Immo immobilizer Emulator for Yamaha bikes, Motorcycles, scooters Immo immobilizer Emulator for Yamaha bikes, Motorcycles, scooters
In stock
Car Diagnostic Tool

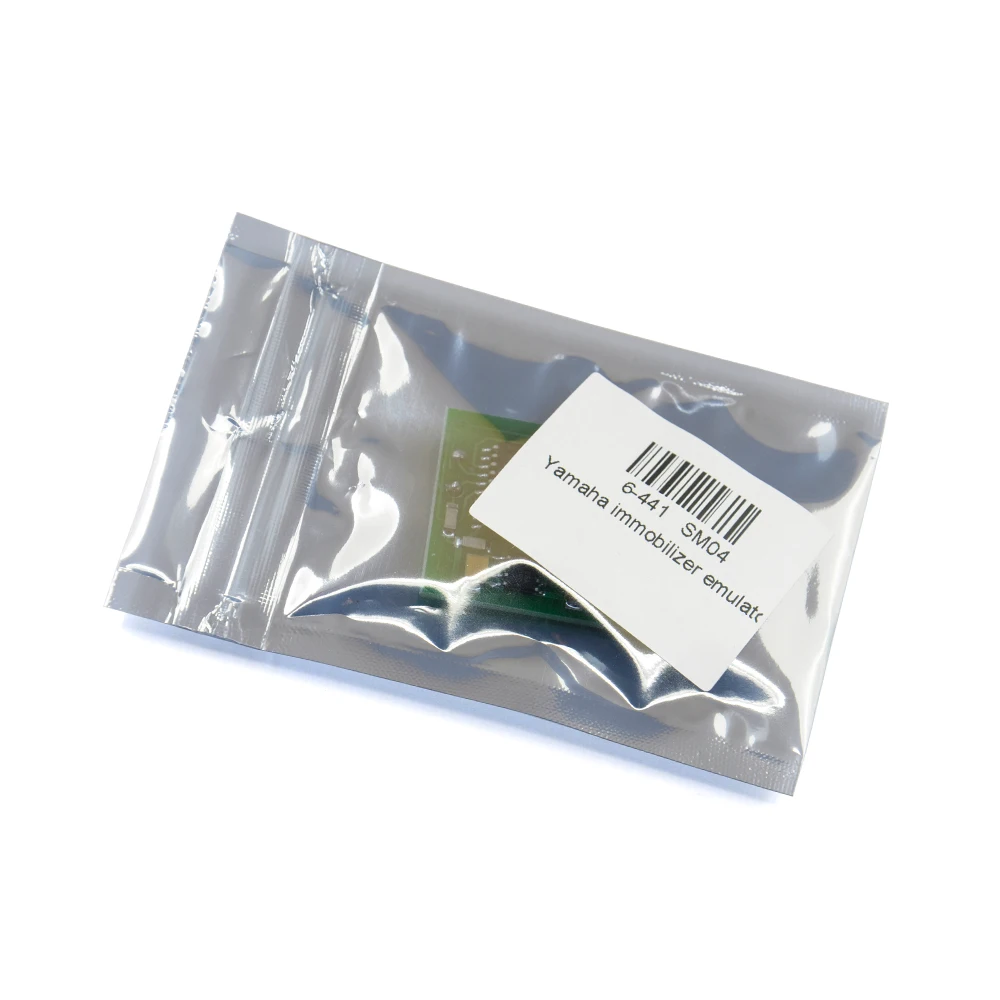

Newest for Yamaha Immo Emulator Full Chips for Yamaha Immobilizer from 2006 to 2009
Immobilizer Emulator for Yamaha
The emulator of an immobilizer for motorcycles and scooters FOR Yamaha.
Works with all motorcycles and scooters Yamaha from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.
For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
Colouring of wires and their appointment:
Black (2 pcs.) GND
Red BATT (+12v)
Yellow IGN (+12v)
Gray LED (+5v)
Blue K-line Immo-ECU
Newest for Yamaha Immo Emulator Full Chips for Yamaha Immobilizer from 2006 to 2009
Immobilizer Emulator for Yamaha
The emulator of an immobilizer for motorcycles and scooters FOR Yamaha.
Works with all motorcycles and scooters Yamaha from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.
For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
Colouring of wires and their appointment:
Black (2 pcs.) GND
Red BATT (+12v)
Yellow IGN (+12v)
Gray LED (+5v)
Blue K-line Immo-ECU
