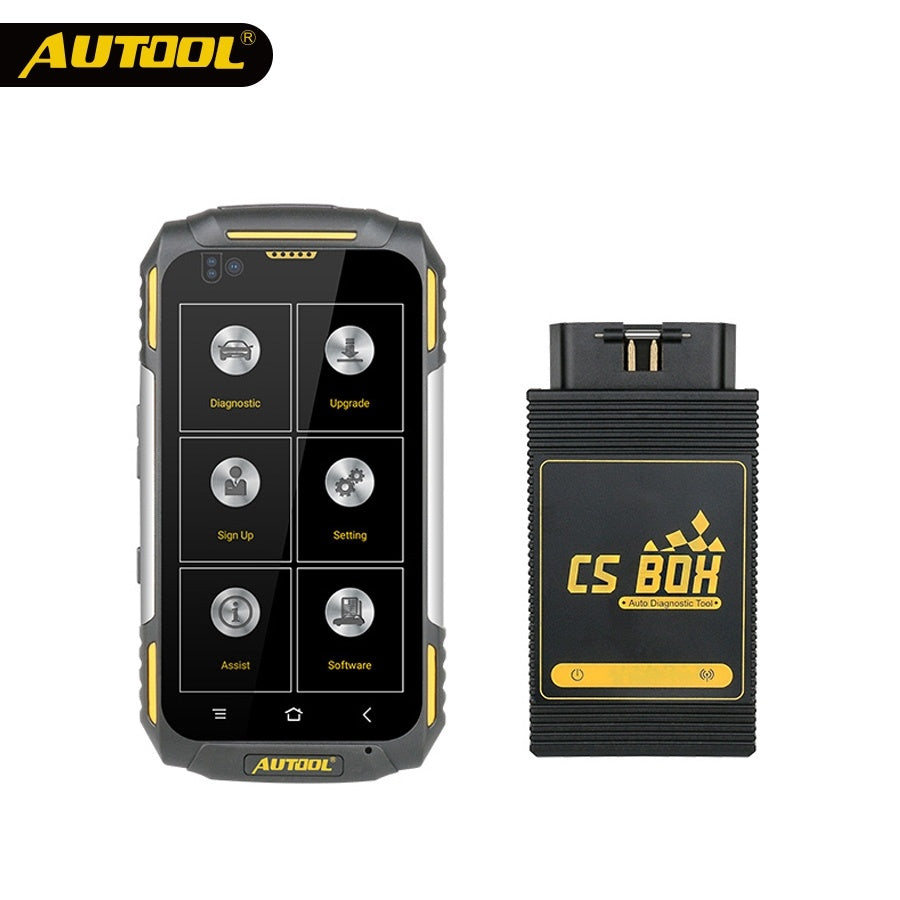

AUTOOL CS BOX Pro WiFi Multi System Diagnostic Tools with Quad core Android IP67 Working Platform Water Dust Shock Proof AUTOOL CS BOX Pro WiFi Multi System Diagnostic Tools with Quad core Android IP67 Working Platform Water Dust Shock Proof
In stock
Car Diagnostic Tool
Software Version: Newest
Item Type: Other
Power: W
Electronic: Yes
Item Weight: 0.6kg
Hardware Version: Newest
Item Length: 18cm
Model Name: CS BOX Pro WiFi
Material Type: High Quality
Voltage: V
Item Height: 7cm
Item Width: 13cm
External Testing Certification: ISO9000
CSBOX Plateform Specifications:
CPU MTK6580 Quad core—1.3GHz
System Android 5.1
Battery 3200MAh
Display 4 inch IPS/ FWVGA 960*540 pixels
RAM/ROM 1GB RAM /8GB ROM
SD card support, up to 32GB
WIFI 802.11 a/b/g/n 2.4G
Bluetooth Bluetooth4.0
Front Camera 2.0M
Back Camera 8.0M
Size 115.3*69.4*14.5mm
Product Features:
1 Supporting ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols.
2 High-speed, medium speed and low speed CAN-BUS, Single CAN-BUS diagnosis protocols is supported.
3 Checking out the year and model of the vehicles automatically and quickly. All inclusive software coverage - European, American, Asian and Australian prevalent vehicles.
4 OBDII diagnostic connector has a wide compatibility, which don’t need to replace other connector, during the testing.
5 Hardware architecture uses new design with multiple protection, interference and stability. Built-in overvoltage protection module is applied, in order to protect scanner and vehicle against accidental damage during checking.
Language supported:
English, German，Finnish, French，Hungarian，Italian，Japanese，Korean，Dutch，Polish，Portuguese Portugal，Romanian，Russian，Swedish, Spanish，Turkish，Chinese Simplified，Chinese Traditional，Czech，Arabic
System Covered:
ME-Motor electronics, CDI-Common Rail Diesel Injection, ETC-Electronic transmission control, ESM-Electronic selector module, SBC-Sensotronic Brake Control, ESP-Electronic stability program, BAS-Brake assist, Suspension, TPC-Tire pressure monitor, Airbag, CGW-Central gateway, EIS-Electronic ignition switch, OCP-Overhead control panel, UCP-Upper control panel, XALWA-Xenon headlamp, HRA-Headlamp range control, ATA-Anti-theft alarm system, IC-Instrument cluster, ASSYST-Active Service System, SCM-Steering column module, EPS-Electrical power steering, PTS-Parktronic system, EPB-Electric parking brake, COMAND/AUDIO, CD/DVD, TV tuner, CTEL-Cellular telephone, DCM-Door control module, ESA driver-Electric seat adjustment driver, ESA passenger-Electric seat adjustment passenger, AAC-Air conditioning, WSS-Weight sensor system, SVMCM-Special vehicle multifunction control module.
Function covered:
Quick Test, Read ECU Info., Read DTCs, Erase DTCs, Clear learning value, Data Stream, Actuations, Read freeze frame data, Read/Write VIN, Basic Reset, Control unit adaptations, Throttle adaptations, Air bleeding, Level calibration, Theft alarm Reset, Key programming, Oil change, Idle speed learning, Idle speed Adjustment, Ignition timing adjustment, Camshaft timing control learning, Maintenance functions, ECU Initial startup, ECU initialization
Kindly Note:
1 System and function support was based on car year and system. The AUTOOL CS BOX can not work on all year and all system
2 The AUTOOL CS BOX support the 12V cars which have standard OBDII 16pin socket only, it can not work on 24V heavy duty
3 Free updating within 3 year, from the date of online automatically updating.
Vehicle make covered:
AISA: ACURA, HONDA, TOYOTA, LEXUS, NISSAN, IFINITI, MITSUBISHI, SUBARU, SUZUKI, ISUZU, MAZDA,DAIHATSU, HYUNDAI, KIA, PROTON, PERODUA
EUROPE: MERCEDES-BENZ, SAMRT, BMW, MINI, AUDI, VW, SKODA, SEAT, VOLVO, OPEL, VAUXHALL, PEUGOET, CITROEN, EURFORD, PORSCHE, JAGUAR, LANDROVER, FIAT, LANCIA, SAAB, RENAULT，ALFA，BENTLEY
AMERICA: GM, AMFORD, CHRYSLER,JEEP,SCION
AUSTRALIA:AUSFORD, HOLDEN
CHINESE: CHERY, GEELY, GWM,LIFAN
OTHER:OBD-II
Diagnostic Adapter Specifications:
MCU: ARM7 processor, 66MHz
Input Voltage: DC 8-18V
Communication Mode: WIFI
Storage Temperature: -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%
Operating Temperature: -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%
Dimension: 137mm*175mm*63mm
Package Include:
1x AUTOOL CS BOX Pro unit;
1x Diagnostic Adapter;
1x User Manual (in English only)
1xUSB Cable;
1xPlug;
1xCarry bag;
1xHook with compass;
1xearphone
Software Version: Newest
Item Type: Other
Power: W
Electronic: Yes
Item Weight: 0.6kg
Hardware Version: Newest
Item Length: 18cm
Model Name: CS BOX Pro WiFi
Material Type: High Quality
Voltage: V
Item Height: 7cm
Item Width: 13cm
External Testing Certification: ISO9000
CSBOX Plateform Specifications:
CPU MTK6580 Quad core—1.3GHz
System Android 5.1
Battery 3200MAh
Display 4 inch IPS/ FWVGA 960*540 pixels
RAM/ROM 1GB RAM /8GB ROM
SD card support, up to 32GB
WIFI 802.11 a/b/g/n 2.4G
Bluetooth Bluetooth4.0
Front Camera 2.0M
Back Camera 8.0M
Size 115.3*69.4*14.5mm
Product Features:
1 Supporting ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols.
2 High-speed, medium speed and low speed CAN-BUS, Single CAN-BUS diagnosis protocols is supported.
3 Checking out the year and model of the vehicles automatically and quickly. All inclusive software coverage - European, American, Asian and Australian prevalent vehicles.
4 OBDII diagnostic connector has a wide compatibility, which don’t need to replace other connector, during the testing.
5 Hardware architecture uses new design with multiple protection, interference and stability. Built-in overvoltage protection module is applied, in order to protect scanner and vehicle against accidental damage during checking.
Language supported:
English, German，Finnish, French，Hungarian，Italian，Japanese，Korean，Dutch，Polish，Portuguese Portugal，Romanian，Russian，Swedish, Spanish，Turkish，Chinese Simplified，Chinese Traditional，Czech，Arabic
System Covered:
ME-Motor electronics, CDI-Common Rail Diesel Injection, ETC-Electronic transmission control, ESM-Electronic selector module, SBC-Sensotronic Brake Control, ESP-Electronic stability program, BAS-Brake assist, Suspension, TPC-Tire pressure monitor, Airbag, CGW-Central gateway, EIS-Electronic ignition switch, OCP-Overhead control panel, UCP-Upper control panel, XALWA-Xenon headlamp, HRA-Headlamp range control, ATA-Anti-theft alarm system, IC-Instrument cluster, ASSYST-Active Service System, SCM-Steering column module, EPS-Electrical power steering, PTS-Parktronic system, EPB-Electric parking brake, COMAND/AUDIO, CD/DVD, TV tuner, CTEL-Cellular telephone, DCM-Door control module, ESA driver-Electric seat adjustment driver, ESA passenger-Electric seat adjustment passenger, AAC-Air conditioning, WSS-Weight sensor system, SVMCM-Special vehicle multifunction control module.
Function covered:
Quick Test, Read ECU Info., Read DTCs, Erase DTCs, Clear learning value, Data Stream, Actuations, Read freeze frame data, Read/Write VIN, Basic Reset, Control unit adaptations, Throttle adaptations, Air bleeding, Level calibration, Theft alarm Reset, Key programming, Oil change, Idle speed learning, Idle speed Adjustment, Ignition timing adjustment, Camshaft timing control learning, Maintenance functions, ECU Initial startup, ECU initialization
Kindly Note:
1 System and function support was based on car year and system. The AUTOOL CS BOX can not work on all year and all system
2 The AUTOOL CS BOX support the 12V cars which have standard OBDII 16pin socket only, it can not work on 24V heavy duty
3 Free updating within 3 year, from the date of online automatically updating.
Vehicle make covered:
AISA: ACURA, HONDA, TOYOTA, LEXUS, NISSAN, IFINITI, MITSUBISHI, SUBARU, SUZUKI, ISUZU, MAZDA,DAIHATSU, HYUNDAI, KIA, PROTON, PERODUA
EUROPE: MERCEDES-BENZ, SAMRT, BMW, MINI, AUDI, VW, SKODA, SEAT, VOLVO, OPEL, VAUXHALL, PEUGOET, CITROEN, EURFORD, PORSCHE, JAGUAR, LANDROVER, FIAT, LANCIA, SAAB, RENAULT，ALFA，BENTLEY
AMERICA: GM, AMFORD, CHRYSLER,JEEP,SCION
AUSTRALIA:AUSFORD, HOLDEN
CHINESE: CHERY, GEELY, GWM,LIFAN
OTHER:OBD-II
Diagnostic Adapter Specifications:
MCU: ARM7 processor, 66MHz
Input Voltage: DC 8-18V
Communication Mode: WIFI
Storage Temperature: -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%
Operating Temperature: -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%
Dimension: 137mm*175mm*63mm
Package Include:
1x AUTOOL CS BOX Pro unit;
1x Diagnostic Adapter;
1x User Manual (in English only)
1xUSB Cable;
1xPlug;
1xCarry bag;
1xHook with compass;
1xearphone
