Item Type: Alarm Systems & Security
Voltage: 5V
Item Width: 10inch
External Testing Certification: CC
Item Weight: 0.6kg
Item Length: 10inch
Model Name: Tire Pressure Tester
Special Features: Tire Pressure Tester
Material Type: plastic and metal
Item Height: 10inch
Tire Pressure Tester name: Tire Pressure Monitoring System
Tire Pressure Tester shipping: fast
Tire Pressure Tester package: standard
Tire Pressure Tester quality: best
Tire Pressure Tester function: supper
Tire Pressure Tester warranty: 1 year
Tire Pressure Tester price: lowest
Tire Pressure Tester operation: easy

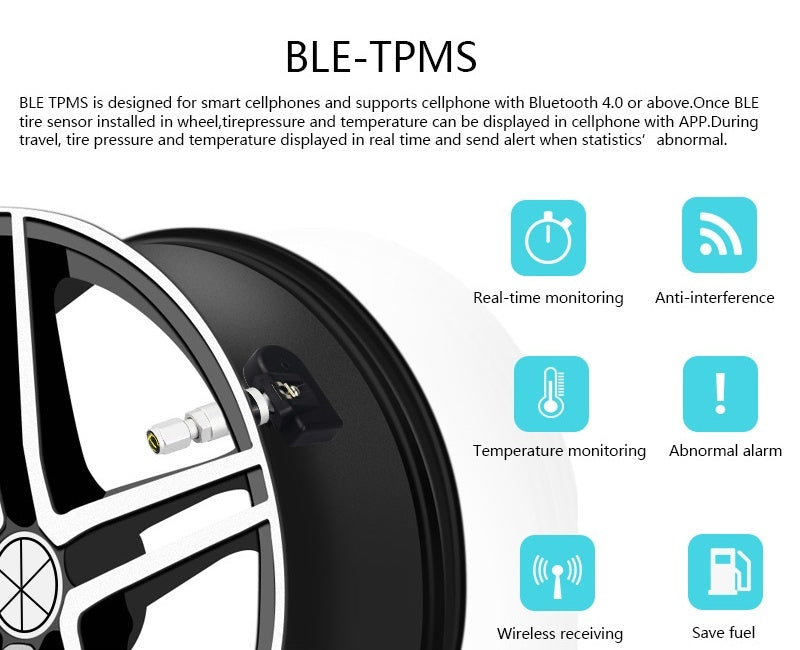

BLE TPMS product which is designed for smart cellphones and supports cellphone with Bluetooth 4.0 or above.

Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety,

please read manual before using, thank you!


WARNING:

Support cellphone with Bluetooth 4.0 or above. Do NOT support Cellphone with Bluetooth lower than 4.0. Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone. If tire

pressure accelerates down or up continuously, please stop car and check if there's any problem with the tire. This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire. It's important to use

tire with high quality. Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.


Sensor Specifications:

Processor: ARM M0
Working Voltage: 3V
Working Current: 100μA
Standby Current: ≤ 2.2μA
Bluetooth Working Frequency: 2.4GHz
Bluetooth Transmitting Power: 0dBm MAX
Wait Time: ≤ 5s
Display: Phone APP
Waterproof Standard: IP67
Working Humidity: 95% MAX
Tire Pressure Detection Range: 100-1300kPa
Tire Pressure Detection Accuracy: ± 10kPa
Tire Temperature Detection Accuracy: ± 3℃
Working Temperature: -30℃ ~ +80℃ (Outer Sensor)
Working Temperature: -40℃ ~ +85℃ (Inner Sensor)
Storage Temperature: -30℃ ~ +85℃ (Outer Sensor)
Storage Temperature: -45℃ ~ +125℃ (Inner Sensor)

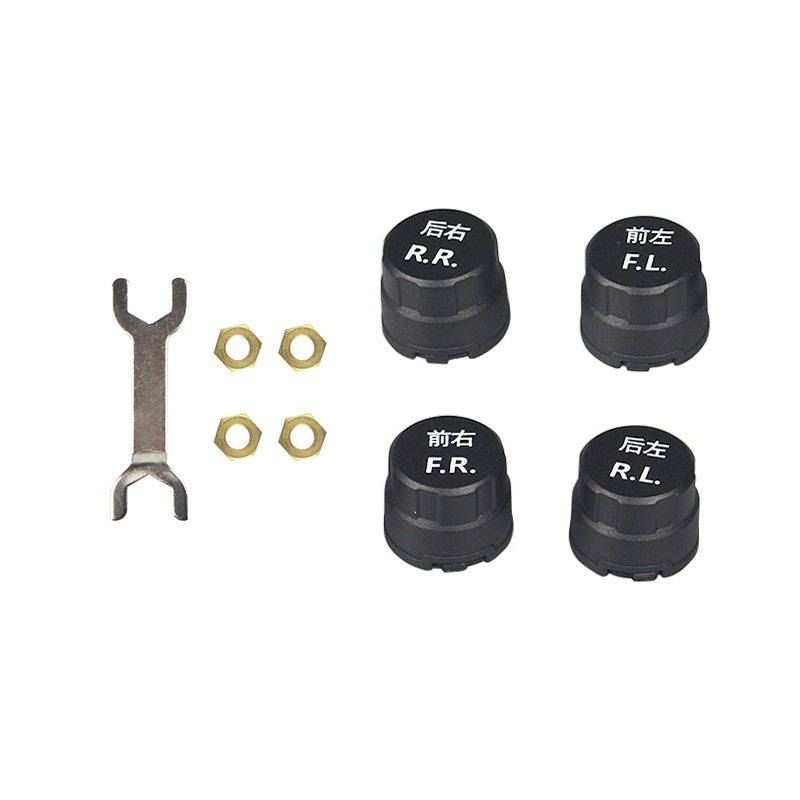

Battery Capacity: 140mAh (Outer Sensor)

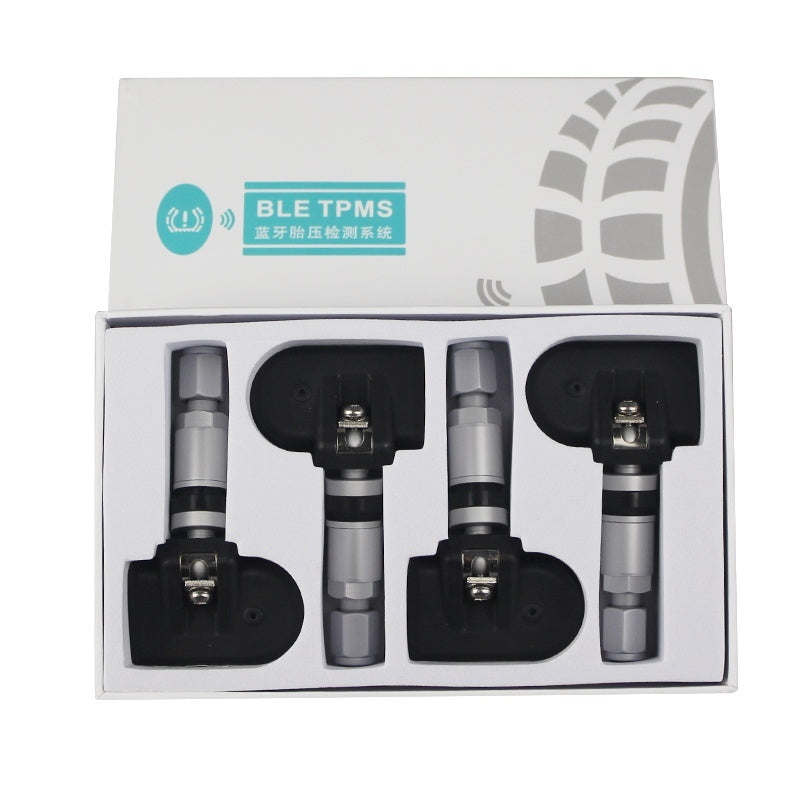

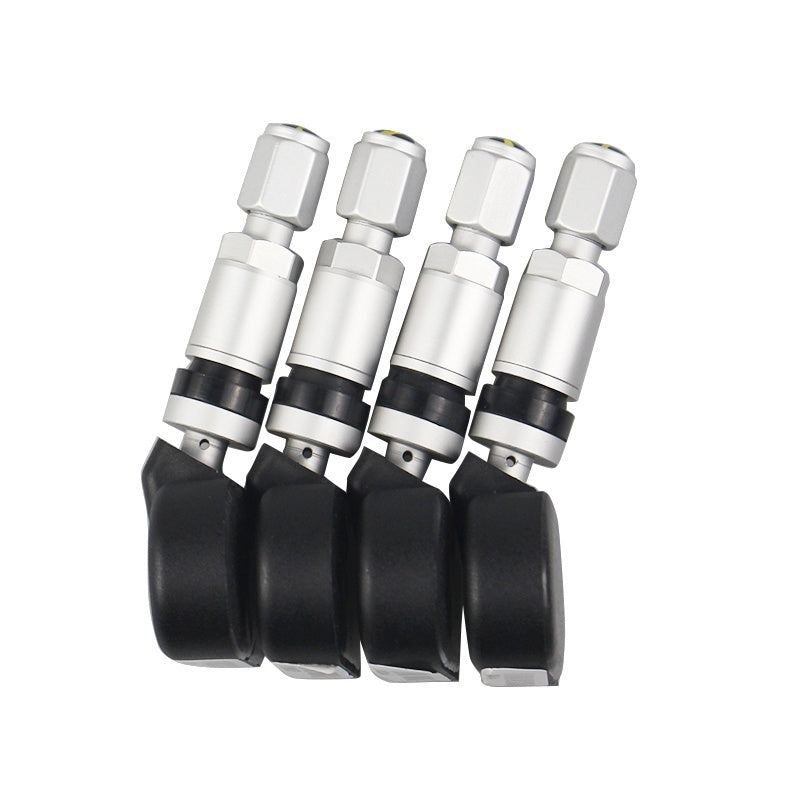

Battery Capacity: 330mAh (Inner Sensor)
Battery Life: 3~5 Years (Outer Sensor)
Battery Life: 5~8 Years (Inner Sensor)
Sensor Weight: 8g±1g(Outer Sensor)
Sensor Weight: 30g±1g (Inner Sensor)


APP Description:

Compatible Operating System:

TPMS supports both Android and iOS, requires Bluetooth 4.0 or above.

APP Installation:

Option 1: Scan QR code on card, then download and install;
Option 2: Search “BEL TPMS” in APP Store or Google play Store, then download and install.



another TPMS:

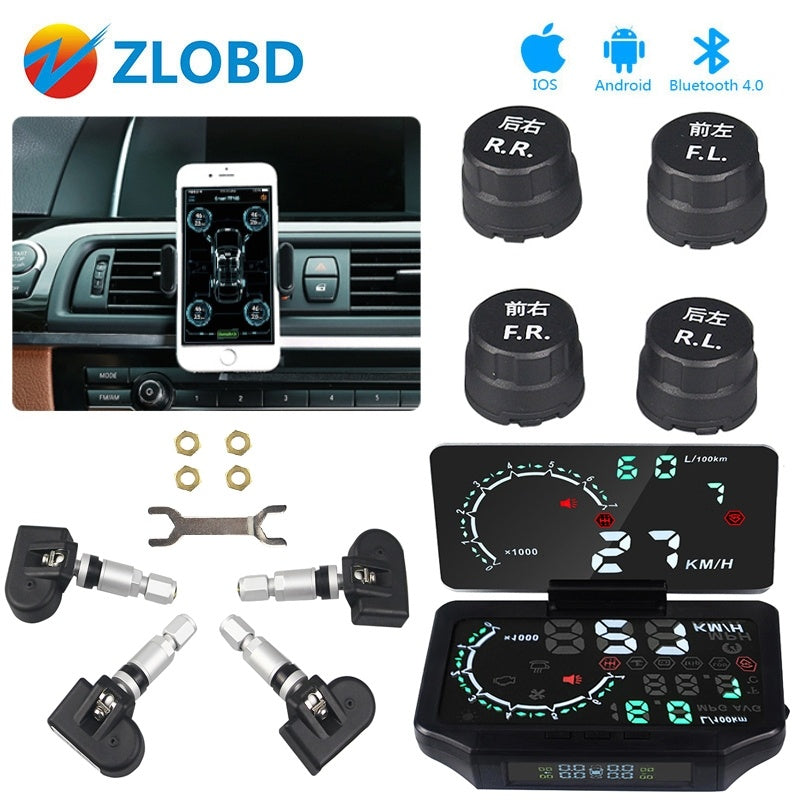

Main Functional Features of HUD


1.This product combines the two functions of HUD and tire pressure monitoring system, which makes that the drivers not only can drive without head up, and keep track of the vehicle dynamics, but also can see the vehicle tire state, while the tire pressure monitoring system with LCD color display, can make the vision clearly. Combined with HUD perfectly, the functions of the tire pressure monitoring system include air leak alarm, low voltage alarm, high voltage alarm, high temperature alarm, and sensor low electricity alarm.
2.The projection display panel function, can make the owners see more clearly in the daytime, with the faster and more convenient use (optional).
3.The more user-friendly design with the design concept of the slope type of high front and low back, can effectively protect people's eyes, and prevent intense light exposure to the human eye
4.It can automatically adapt to OBD II or EUOBD (vehicular automatic detection system) models, and can be used as long as being plugged.
5.Large screen of 5.8 inches with high-definition display
6.Colorful screen design, makes the picture richer, and easier for read
7.Rich display content: vehicle speed, engine speed, water temperature, voltage, instantaneous fuel consumption, average fuel consumption, mileage measurement, shift reminder, fatigue driving reminder, low voltage alarm, high water temperature alarm, over-speed alarm, engine fault alarm, clear fault code, automatic switch of km and miles
8.Automatic switch with the vehicle, can effectively protect the vehicle battery
9.Automatic brightness adjustment mode, results in no dazzling during the driving process.

Functions of HUD screen

1.Temperature display window
2.Units of degrees Celsius and degrees Fahrenheit
3.Speed display window
4.Speed indication
5.Function instructions: the left is engine fault code indication, the right is voice indication, the upper is setting state indication, and the lower is fatigue driving reminder
6.Ambient light induction window
7.From the left to the right: shift reminder, engine temperature, battery voltage, current mileage, engine load, and throttle opening
8.Fuel consumption display window
9.The upper is instant fuel consumption, the lower is imperial instant fuel consumption, and the right is average fuel consumption
10.Metric and imperial speed units

Functions of HUD keys
Please refer to tire pressure specification for the display screen


1.The OBDII data interface acts as the data line that connects the vehicle
2. Set the dial wheel, which can be allocated up shortly, allocated down shortly, pressed vertically and shortly, allocated up long, allocated down long, and pressed vertically and long

Function setting:
1、In the working mode, the display content can be switched by pressing the up and down keys (coolant temperature, battery voltage, mileage, engine load ratio, throttle position).
2、In the working mode, press the middle key to enter the setting mode, and the setting number 1-13 indicates the number of consecutive keystrokes. Press the middle key shortly to enter the setting mode, then press the middle key to skip to the next setting, and then adjust the parameters from the up and down keys.
1)16 of displacement setting means 1.6L
2)107 of speed correction means 107%
3)120 of speed alarm value means alarm prompt at 120KM/H
4)100 of fuel consumption correction, means 100%
5)50 of gearshift indication speed means 5000 rpm
6)80 of the maximum gearshift indication speed means no more indication at
the speed over 80KM/H
7)of water temperature alarm value means 110 degrees Celsius
8)of voltage alarm value means 10.5V
9)0 of speed and mileage unit means metric, and 1 means imperial
10)0 of water temperature unit means degrees Celsius and 1 means degrees Fahrenheit
11)0 of alarm sound switch means off and 1 means on
12)40 of fatigue driving time means 4.0 hours
13)10 of shutdown delay time means automatic shutdown after flameout for 10 seconds.

Technical parameters:
Ambient temperature: -25c—+85c
Atmospheric pressure 86-106KPa
Relative humidity: 10%-95%
Ambient noise<=60dB(A)
Alarm sound level: 》=30dB(A)
Operating voltage: 10V~18Vdc(12Vdc/400mA)
Product size: 145*100*33 (mm)
Product weight: 170g
