Original XTOOL iOBD2 Mini Diagnostic Code Scanner For All OBDII Protocols Bluetooth 4.0 IOS & Android IOBD2 Better Than ELM327 Original XTOOL iOBD2 Mini Diagnostic Code Scanner For All OBDII Protocols Bluetooth 4.0 IOS & Android IOBD2 Better Than ELM327
Previous NextIn stock
Car Diagnostic Tool
Original XTOOL iOBD2 Mini Diagnostic Code Scanner For All OBDII Protocols Bluetooth 4.0 IOS & Android IOBD2 Better Than ELM327
XTOOL iOBD2 Mini OBD2 EOBD Scanner Support Bluetooth 4.0 for iOS and Android
New released XTOOL iOBD2 Mini Scanner, support both iOS and Android system, support Bluetooth 4.0.
XTOOL iOBD2 support all cars after 1996 with OBD2 EOBD protocol.
Supported OBDII protocols:
1. ISO15765-4 (CAN)
2.ISO14230-4 (KWP2000)
3.ISO9141-2
4.J1850 VPW
5.J1850 PWM
Recommended APP: IOBD2 (Can search and download it in Apple store and Google Play Store)
Bluetooth Connection: Bluetooth 4.0
Bluetooth Connection
IOBD2 can be connected with all devices based on Apple iOS and Android OS with Bluetooth, It is very reliable.
Function:
1. Diagnostic

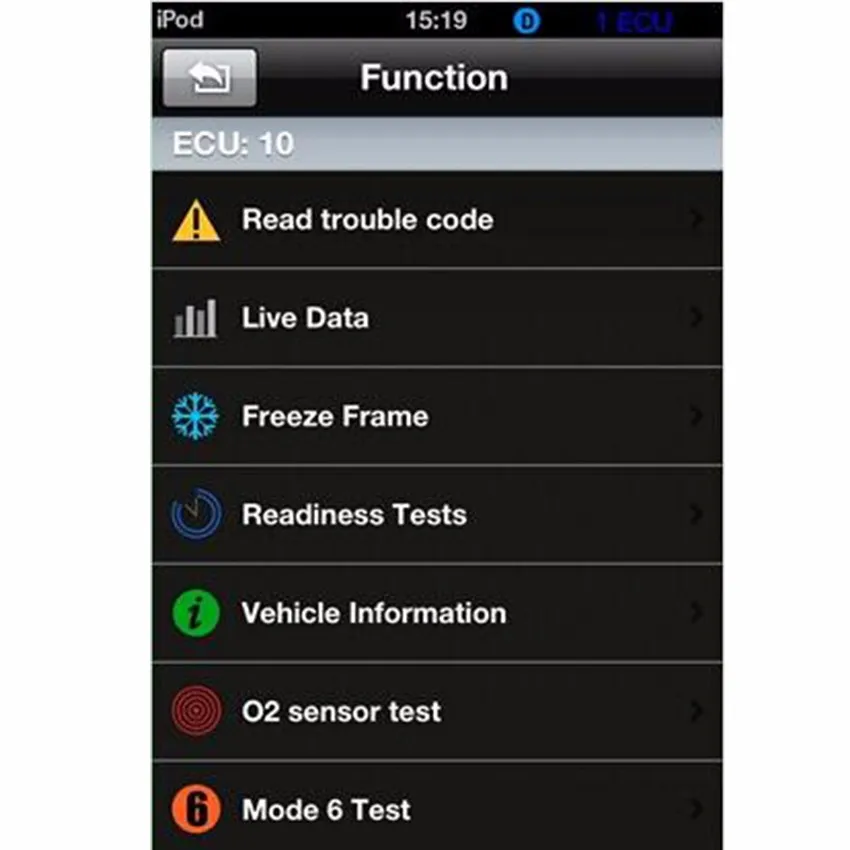

The [Diagnostic] functions include (Picture 1):
Picture 1:
[Reads DTCs]: Reads the current DTCs stored in the car engine and shows their detailed information.
[Clear DTCs]: Clears all the current DTCs.
[Live data]: Reads all the running parameters related to the ECU.
[Freeze frame data]: ECU will set DTCs and record the data stream of the car engine at the moment when emissions related faults occurred. And the data is called freeze frame data.
[Readiness test]: Shows the status of readiness test. Click Readiness test in the menu, the screen will display the test status of the car.
Support and complete: It means the car supports this test and has completed.
Support but incomplete: It means the car supports this test but has not completed.
Not supported: It means the car does not support this test.
2) My Dashboard
Including Functions as following pictures:
Picture 2:
Picture 3:
Picture 4:
Picture 5:

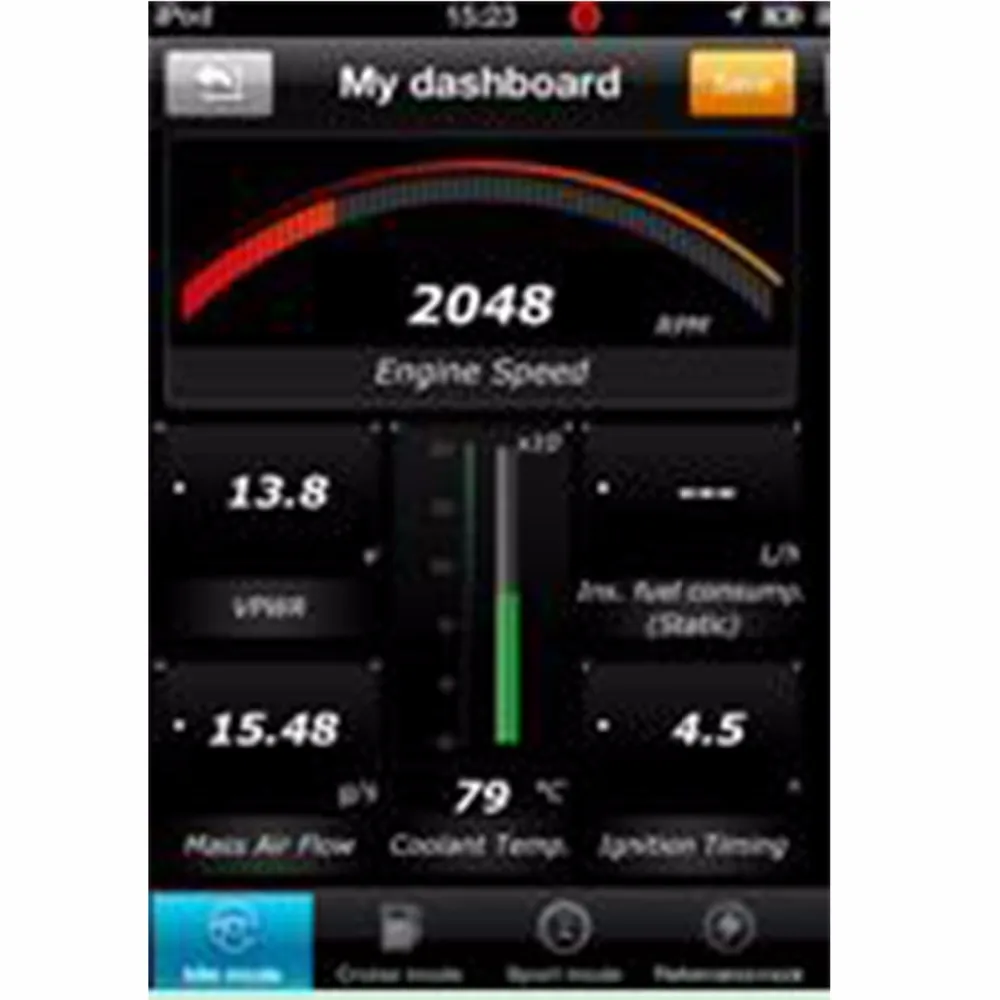

[Idle mode]: show you the engine t=rotational speed, water temperature, battery voltage, Air-intake temperature, instant fuel consumption(static), average fuel consumption. Ever wished you had your own customizable gauges, showing only the data you were interested in. (Picture 2)

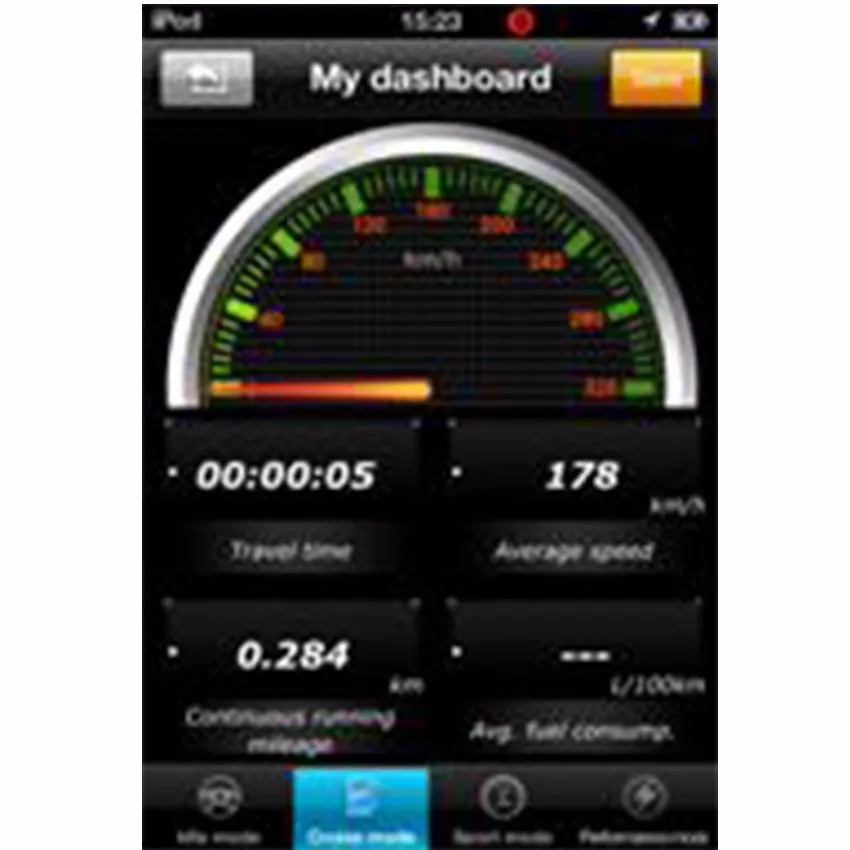

[cruise mode]: show you the vehicle speed, the current engine loaad, water temperature, vehicle travel time, vehicle travel average speed, continuous running mileage, instant fuel consumption(dynamic), ever wished you had your own cumstomizable gauges, showing only the data you were interested in. (Picture 3)
[Sport mode]: show you the engine rotational speed, vehicle speed, water temperature. Ever wished you have your own customizable gauges, showing only the data you were interested in. (Picture 4)

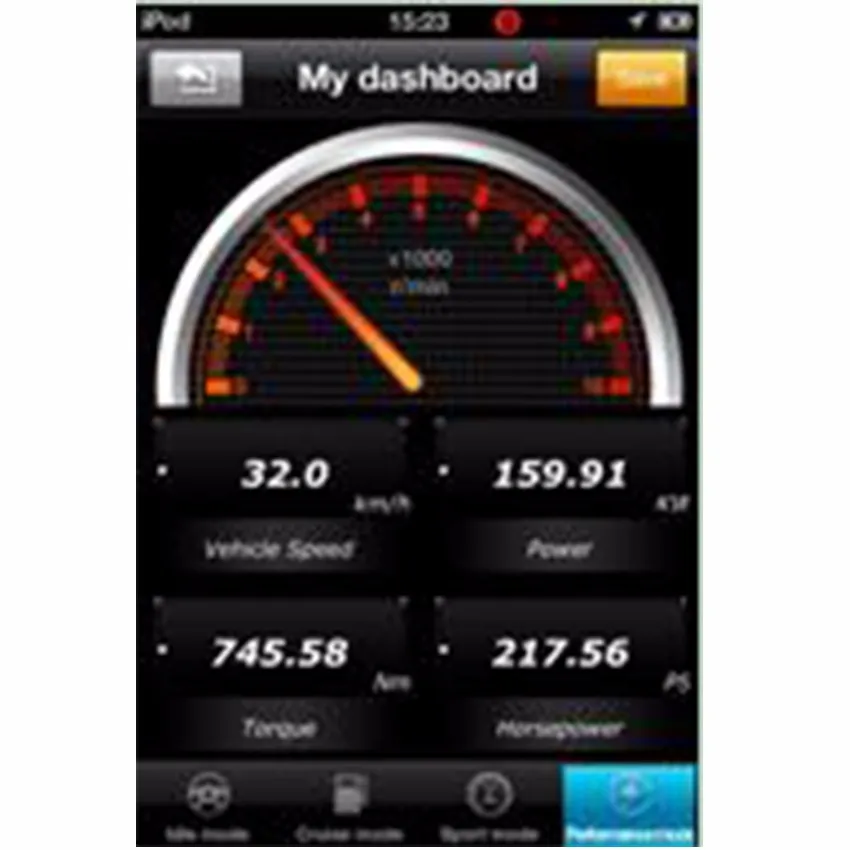

[Performance mode]: show you the vehicle speed, capacity, torqur=e, horsepower and you can also customize your gauges here. (Picture 5)

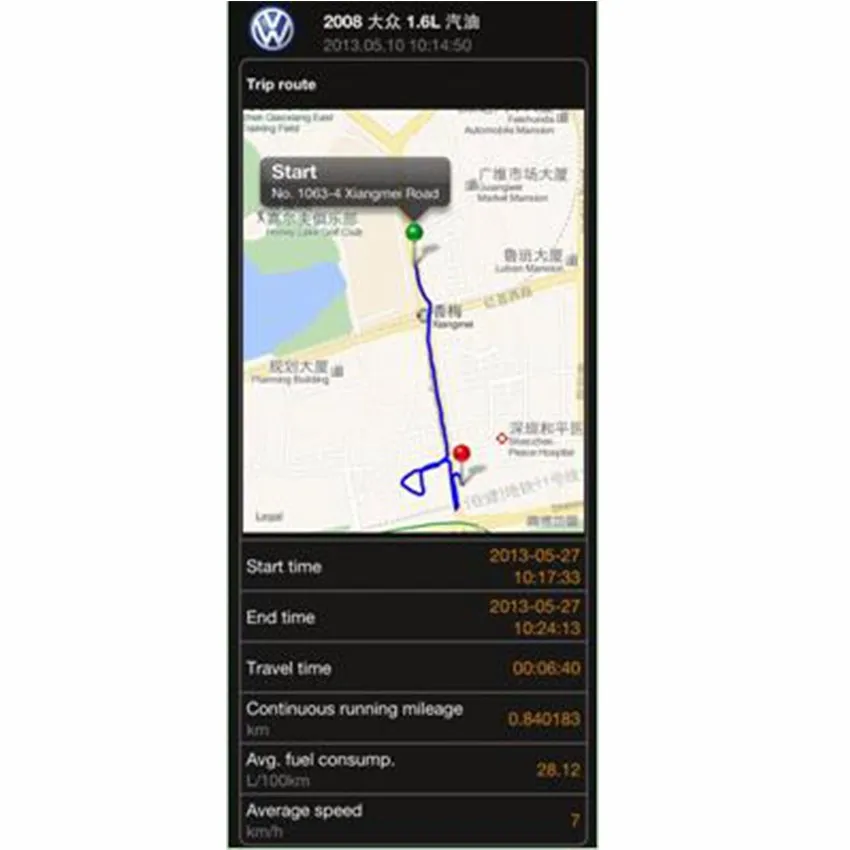

3) Driving Track(racetrack mapping)
It is to show the drive’s driving track of the vehicle to give data and foundation for drive’s reference. Open the Location Services of the mobile, connect iobd2 to the vehicle and open iobd2 APP, choose “My Dashboard”, and it will record the track of the vehicle. Quit “My Dashboard” then it will stop recording the track of the vehicle.

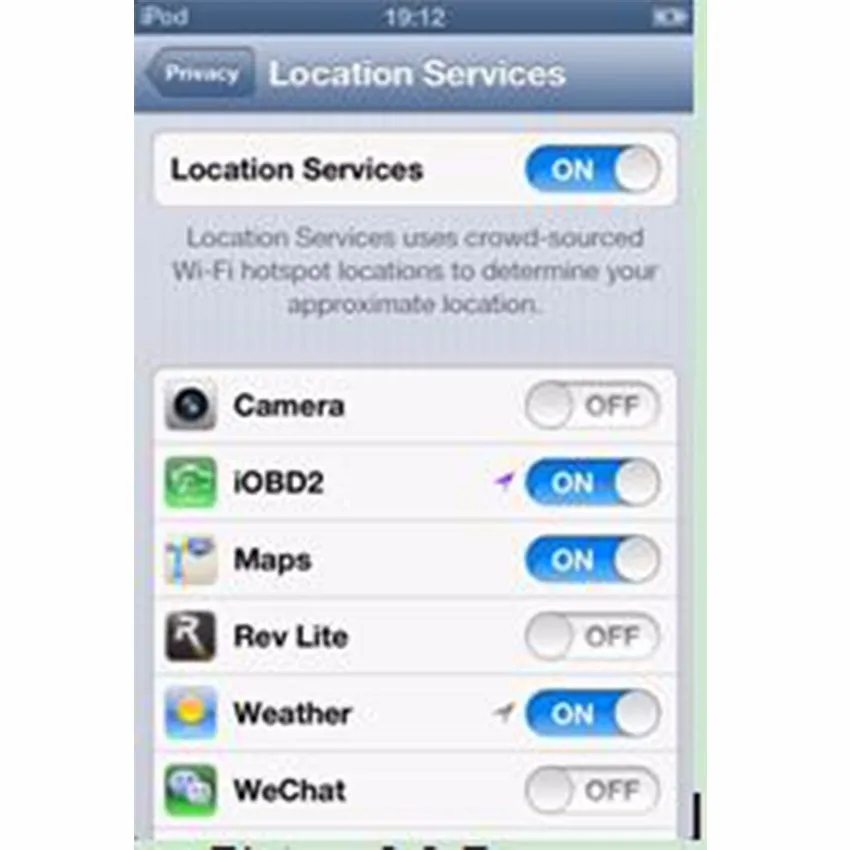

Open “Setting” of your mobile, Choose Privacy, let the Location Services ON, and let iOBD2 ON (Picture 6), go to iobd2 APP “My Dashboard”, and start driving the vehicle, then it will record the track of the vehicle. The route is saved in “History”.
Picture 6:
4) Perfomance test
Including functions as the following pictures:
Picture 7
Picture 8:
[Accelerate/Decelerate test]: Test acceleration / deceleration process time and distance. (Picture7)

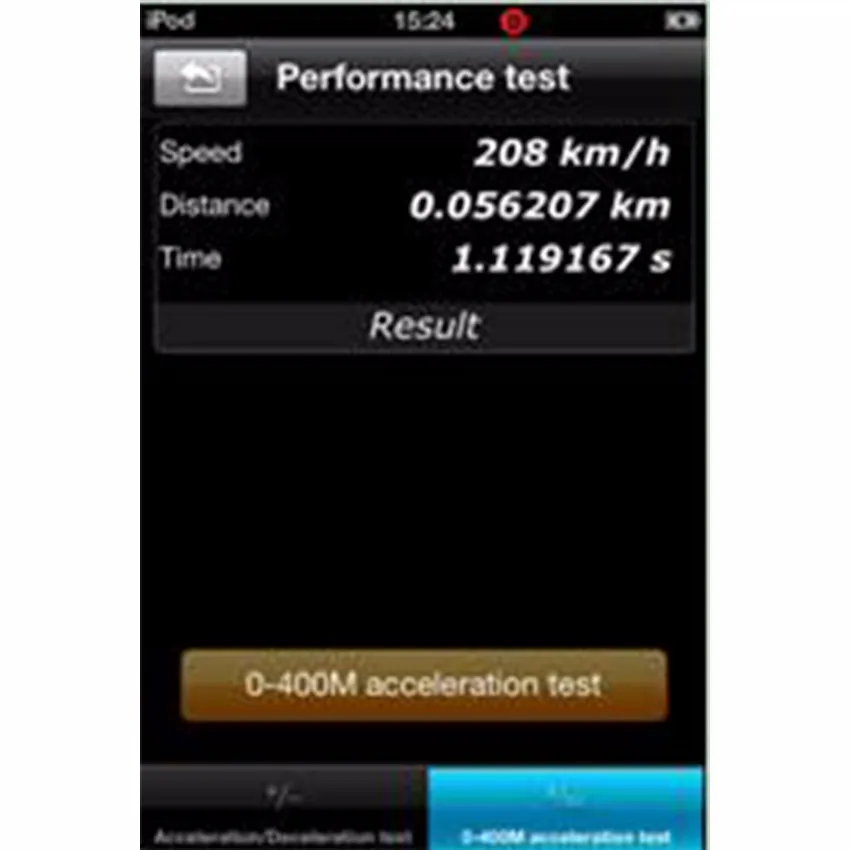

[0 to 400m acceleration test]: Test spending time from 0 to 400 meters. (Picture 8)
5) Setting

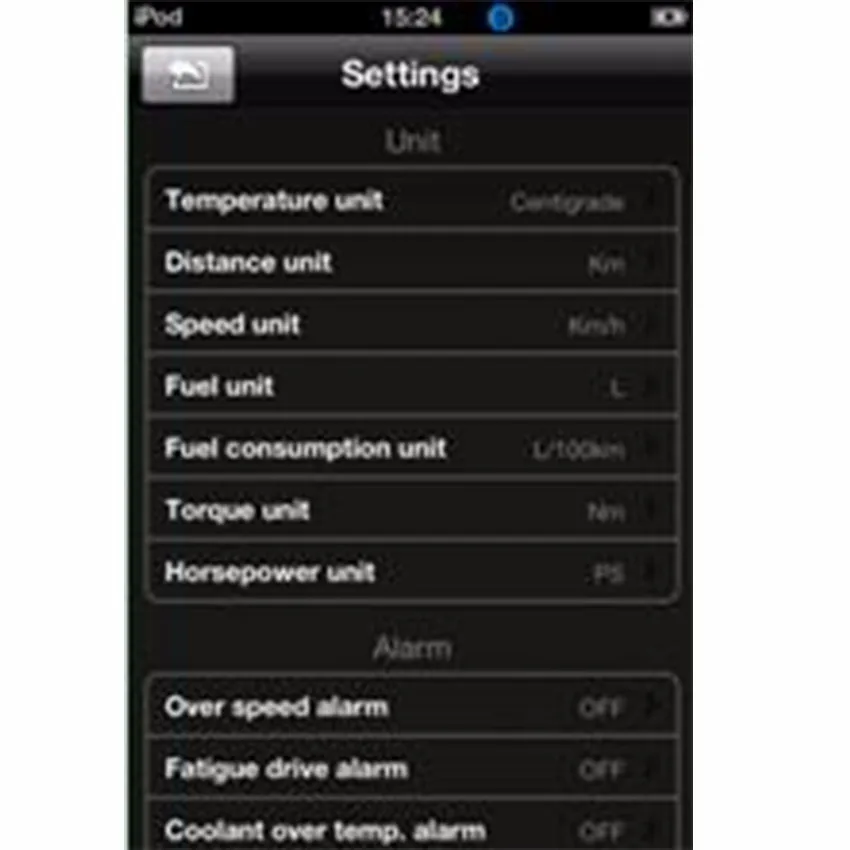

It allows users to change the unit of temperature, mileage, vehicle speed, fuel, fuel consumption, torque and horsepower, set the alarm for over speed, fatigue driving and water temperature, and set parameters of vehicle weight, fuel consumption coefficient and vehicle speed coefficient according to their needs on [Customize My Dashboard] (Picture 9) .
Picture 9:
6) History

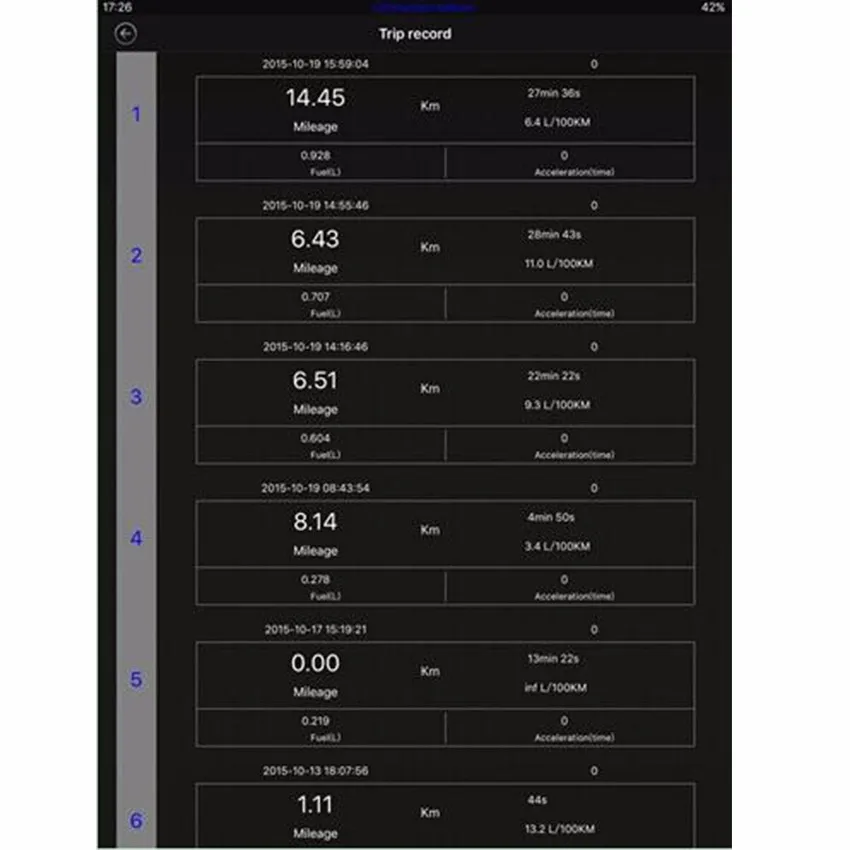

Driving data such as trip distance, average speed, fuel consumption and acceleration time will be recorded.
Picture 10:
Please read following tips before you use iobd2:
1. Please plug the iOBD2 adapter correctly into your car by following the installation instructions before operating.
2. When driving the car, please do not operate this unit. Any distraction may cause an accident.
3. iOBD2 communicates with cars via Bluetooth. Please do not use this product in the places with strong electro-magnetic interference in order to ensure communication proper.
All information on this manual is based on the latest iOBD2 MINI version. XTOOLTECH reserves the right to make changes at any time without notice.
Operating specification
Flash: 2MB
Working Voltage: 9~12 V
Electric Current: < 30 mA
Sleep-mode Electric Current: < 3 mA
Working Temperature: -25C~75C
Storage Temperature: -40C~85C
Working Humidity: < 60 %
Storage Humidity: < 80 %
Dimension: 48 * 42 * 25 (mm)
Net Weight: < 50 g

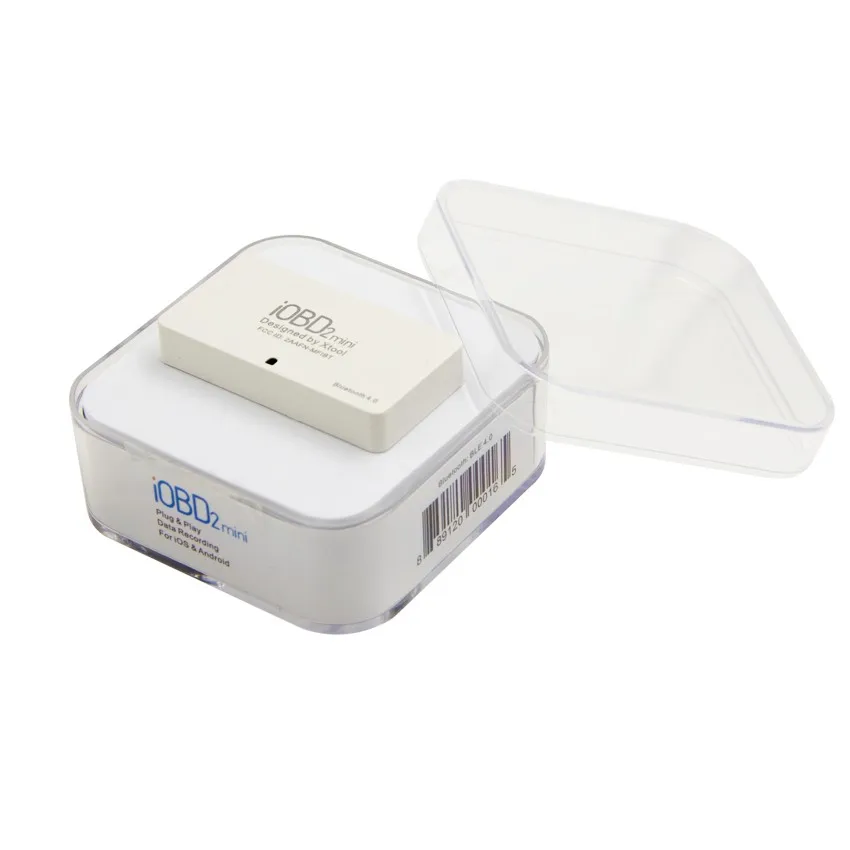

1pc x IOBD2 Mini
